RS2423RP+

৳ 396,200
0.00 (0)


Key Features
  • CPU Model : AMD Ryzen V1780B
  • CPU Quantity : 1
  • CPU Core : 4
  • System Memory : 8 GB DDR4 ECC UDIMM
  • Memory Module Pre-installed : 8 GB (8 GB x 1)
  • Subcategory : Specification
  • 50 Star Points
    • 30 Day Return Policy
    • 💵 Cash on Delivery available
    • 📦 Available for immediate dispatch from our local warehouse
      Delivery within 1–3 business days

    Buy Now

    Specification

    Category
    Subcategory
    Specification
    CPU
    CPU Model
    AMD Ryzen V1780B
    CPU Quantity
    1
    CPU Core
    4
    CPU Architecture
    64-bit
    CPU Frequency
    3.35 (base) / 3.6 (turbo) GHz
    Memory
    System Memory
    8 GB DDR4 ECC UDIMM
    Memory Module Pre-installed
    8 GB (8 GB x 1)
    Total Memory Slots
    2
    Maximum Memory Capacity
    32 GB (16 GB x 2)
    Memory Notes
    Synology reserves the right to replace memory modules with same or higher frequency.
    Storage
    Drive Bays
    12
    Max Drive Bays with Expansion
    24 (RX1223RP x 1)
    Compatible Drive Types
    3.5" SATA HDD, 2.5" SATA SSD
    Hot Swappable Drive
    Yes
    Storage Notes
    Full functionality is only guaranteed with Synology validated drives.
    External Ports
    RJ-45 1GbE LAN Port
    2
    RJ-45 10GbE LAN Port
    1
    USB 3.2 Gen 1 Port
    2
    Expansion Port
    1
    Expansion Port Type
    Mini-SAS HD
    PCIe
    PCIe Expansion
    1 x Gen3 x8 slot (x4 link)
    Appearance
    Form Factor
    2U
    Size (HxWxD)
    88 mm x 482 mm x 578 mm
    Weight
    11.9 kg
    Rack Installation Support
    4-post 19" rack (RKS-02, sold separately)
    Cooling
    System Fan
    60 mm x 60 mm x 3 pcs
    Fan Speed Modes
    Full-Speed, Cool, Quiet
    Easy Replacement System Fan
    Yes
    Power
    Power Recovery
    Yes
    Noise Level
    56.2 dB(A)
    Scheduled Power On / Off
    Yes
    Wake on LAN / WAN
    Yes
    Power Supply Unit
    350 watts
    Redundant Power Supply
    Yes
    AC Input Voltage
    100 V to 240 V AC
    Power Frequency
    50/60 Hz, Single Phase
    Power Consumption (Access)
    114.86 watts
    Power Consumption (HDD Hibernation)
    42.33 watts
    BTU (Access)
    392.18 BTU/hr
    BTU (HDD Hibernation)
    144.53 BTU/hr
    Environment
    Operating Temperature
    0°C to 35°C (32°F to 95°F)
    Storage Temperature
    -20°C to 60°C (-5°F to 140°F)
    Relative Humidity
    5% to 95% RH
    Certification
    FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL
    Warranty
    Warranty
    2 years (extendable to 3 years with EW202 or Extended Warranty Plus)
    Compliance
    RoHS Compliant
    Yes
    Package
    Included Contents
    Main Unit x1, Accessory Pack x1, AC Power Cord x2, Quick Installation Guide x1
    Optional Accessories
    DDR4 ECC UDIMM
    D4EU01-8G/D4EU01-16G
    Expansion Units
    RX1223RP
    Enterprise HDD
    HAT5300 Series
    Plus HDD
    HAT3300 Series
    Enterprise SSD
    SAT5200 Series
    M.2 SSD & 10GbE Combo Card
    E10M20-T1
    M.2 SSD Adapter Card
    M2D20
    25GbE Network Interface Card
    E25G30-F2
    10GbE Network Interface Cards
    E10G21-F2, E10G30-T2, E10G18-T1
    Rail Kit Sliding
    RKS-02

    Description

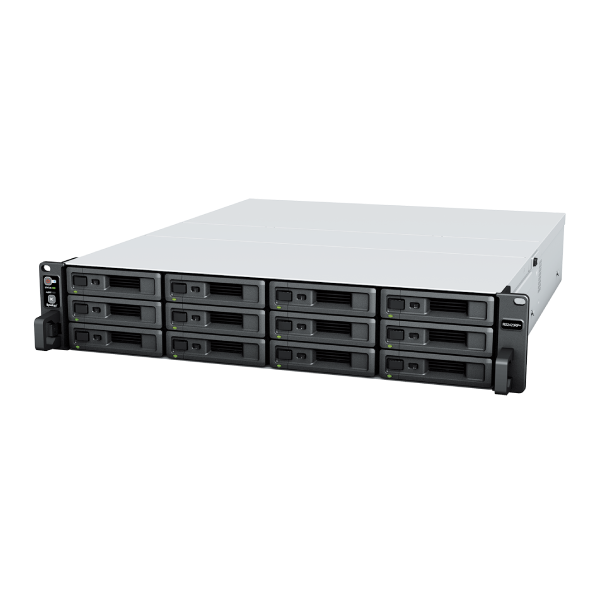

    Synology RackStation RS2423RP+ 12-Bay NAS Storage

    The Synology RackStation RS2423RP+ is a high-performance, 2U rackmount NAS designed to meet the growing demands of small and medium-sized businesses. It offers centralized data storage, efficient backup solutions, advanced data protection, and scalable expansion—all while delivering robust performance, reliability, and energy efficiency.

    Key Specifications:

    • Processor: AMD Ryzen V1780B Quad-Core 3.35 GHz

    • Memory: 8GB DDR4 ECC RAM (expandable up to 32GB)

    • Drive Bays: 12 x 3.5"/2.5" SATA HDD/SSD (hot-swappable)

    • RAID Support: RAID 0, 1, 5, 6, 10, JBOD, Basic, Synology Hybrid RAID (SHR)

    • Networking: 1 x 10GbE, 2 x 1GbE (supports Link Aggregation & Failover)

    • Expansion: PCIe 3.0 x8/x4 slot for 1/10/25GbE NICs or SSD cache

    • USB Ports: 2 x USB 3.2 Gen 1

    • Expansion Unit Support: 1 x mini-SAS HD port for Synology RX1223RP

    • Power Supply: Dual redundant power supplies

    • Cooling: 3 x 60mm system fans

    Performance Highlights:

    • Sequential Read: Over 3500 MB/s

    • Sequential Write: Over 1700 MB/s

    • Random IOPS: Optimized with optional SSD caching

    • Storage Expansion: Scalable up to 24 drives with RX1223RP

    Built-in Data Protection & Reliability:

    • Snapshot Replication: Near-instantaneous backups with version control (RPO as low as 5 minutes)

    • Hyper Backup: Backup to local, remote, or cloud (Google Drive, Dropbox, Synology C2, etc.)

    • Synology High Availability (SHA): Fast failover between two identical units for zero downtime

    • RAID & Redundancy: Hot-swappable drive bays and dual power supplies ensure uptime and quick recovery

    Virtualization & Hybrid Cloud Capabilities:

    • Certified Support: VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack

    • Storage Console: Native integration with VMware and Windows for direct management

    • Container & VM Hosting: Host Docker containers and virtual machines via Synology Virtual Machine Manager

    Collaboration & Communication Suite:

    • Synology Drive: Cross-device file syncing, backup, and remote access

    • Synology Office: Real-time collaboration on documents, spreadsheets, and presentations

    • Synology Chat: Team messaging with encrypted private channels

    • MailPlus: Secure, private email server for teams

    • Synology Calendar: Shared calendar for team scheduling

    • Hybrid Share: Combines on-prem storage with cloud syncing for multi-site collaboration

    Surveillance Station Integration:

    • Supports over 8,300+ camera models

    • ONVIF compliance for broader compatibility

    • Event-based alerts and cloud integration via C2 Surveillance

    • Access from web, desktop, and mobile platforms

    Why Choose the RS2423RP+?

    • High-throughput performance for demanding workloads

    • Excellent for backup, file sharing, virtualization, and surveillance

    • Enterprise-grade features at SMB-friendly pricing

    • Scalable, redundant, and energy-efficient architecture

    • Runs on the award-winning Synology DSM OS for intuitive system management
